引言

上一节我们绘制了自己的三角形，今天来聊聊 OpenGL 的着色器。

具体来讲，在经典的渲染情景中通常以顶点和索引缓冲区的形式向 GPU 发送一堆数据，然后我们要做的实际上是在 GPU 上获取数据，然后对其进行处理（主要是通过不同类型的着色器）。

着色器的类型多种多样，但有两种类型的着色器使用得最多：

• 顶点着色器
• 片段着色器

在我们的渲染 API OpenGL 中也被称为像素着色器。

https://www.khronos.org/opengl/wiki/Shader_Compilation

着色器实现

Infinite/Render 目录下新建 Shader.h：

#pragma once

#include <string>

namespace Infinite {

	class Shader
	{
	public:
		Shader(const std::string& vertexSrc, const std::string& fragmentSrc);
		~Shader();

		void Bind() const;
		void Unbind() const;

	private:
		uint32_t m_RendererID;
	};

}

构造函数目前使用字符串传递，在之后我们可能会改为文件流传输。

在相同的目录下新建 Shader.cpp，快速构造头文件中函数的定义：

#include "ifnpch.h"
#include "Shader.h"

#include <glad/glad.h>

namespace Infinite {

	Shader::Shader(const std::string& vertexSrc, const std::string& fragmentSrc)
	{

	}

	Shader::~Shader()
	{

	}

	void Shader::Bind() const
	{

	}

	void Shader::Unbind() const
	{

	}

}

拷贝示例函数，并且修改为 vertexSrc 和 fragmentSrc：

Shader::Shader(const std::string& vertexSrc, const std::string& fragmentSrc)
{
    // Read our shaders into the appropriate buffers
    // std::string vertexSource = // Get source code for vertex shader.
    // std::string fragmentSource = // Get source code for fragment shader.

    // Create an empty vertex shader handle
    GLuint vertexShader = glCreateShader(GL_VERTEX_SHADER);

    // Send the vertex shader source code to GL
    // Note that std::string's .c_str is NULL character terminated.
    const GLchar* source = vertexSrc.c_str();
    glShaderSource(vertexShader, 1, &source, 0);

    // Compile the vertex shader
    glCompileShader(vertexShader);

    GLint isCompiled = 0;
    glGetShaderiv(vertexShader, GL_COMPILE_STATUS, &isCompiled);
    if (isCompiled == GL_FALSE)
    {
        GLint maxLength = 0;
        glGetShaderiv(vertexShader, GL_INFO_LOG_LENGTH, &maxLength);

        // The maxLength includes the NULL character
        std::vector<GLchar> infoLog(maxLength);
        glGetShaderInfoLog(vertexShader, maxLength, &maxLength, &infoLog[0]);

        // We don't need the shader anymore.
        glDeleteShader(vertexShader);

        // Use the infoLog as you see fit.
        IFN_CORE_ERROR("{0}", infoLog.data());
        IFN_CORE_ASSERT(false, "Vertex Shader compilation failure!");

        // In this simple program, we'll just leave
        return;
    }

    // Create an empty fragment shader handle
    GLuint fragmentShader = glCreateShader(GL_FRAGMENT_SHADER);

    // Send the fragment shader source code to GL
    // Note that std::string's .c_str is NULL character terminated.
    source = (const GLchar*)fragmentSrc.c_str();
    glShaderSource(fragmentShader, 1, &source, 0);

    // Compile the fragment shader
    glCompileShader(fragmentShader);

    glGetShaderiv(fragmentShader, GL_COMPILE_STATUS, &isCompiled);
    if (isCompiled == GL_FALSE)
    {
        GLint maxLength = 0;
        glGetShaderiv(fragmentShader, GL_INFO_LOG_LENGTH, &maxLength);

        // The maxLength includes the NULL character
        std::vector<GLchar> infoLog(maxLength);
        glGetShaderInfoLog(fragmentShader, maxLength, &maxLength, &infoLog[0]);

        // We don't need the shader anymore.
        glDeleteShader(fragmentShader);
        // Either of them. Don't leak shaders.
        glDeleteShader(vertexShader);

        // Use the infoLog as you see fit.
        IFN_CORE_ERROR("{0}", infoLog.data());
        IFN_CORE_ASSERT(false, "Fragment Shader compilation failure!");

        // In this simple program, we'll just leave
        return;
    }

    // Vertex and fragment shaders are successfully compiled.
    // Now time to link them together into a program.
    // Get a program object.
    m_RendererID = glCreateProgram();
    GLuint program = m_RendererID;

    // Attach our shaders to our program
    glAttachShader(program, vertexShader);
    glAttachShader(program, fragmentShader);

    // Link our program
    glLinkProgram(program);

    // Note the different functions here: glGetProgram* instead of glGetShader*.
    GLint isLinked = 0;
    glGetProgramiv(program, GL_LINK_STATUS, (int*)&isLinked);
    if (isLinked == GL_FALSE)
    {
        GLint maxLength = 0;
        glGetProgramiv(program, GL_INFO_LOG_LENGTH, &maxLength);

        // The maxLength includes the NULL character
        std::vector<GLchar> infoLog(maxLength);
        glGetProgramInfoLog(program, maxLength, &maxLength, &infoLog[0]);

        // We don't need the program anymore.
        glDeleteProgram(program);
        // Don't leak shaders either.
        glDeleteShader(vertexShader);
        glDeleteShader(fragmentShader);

        // Use the infoLog as you see fit.
        IFN_CORE_ERROR("{0}", infoLog.data());
        IFN_CORE_ASSERT(false, "Shader link failure!");

        // In this simple program, we'll just leave
        return;
    }

    // Always detach shaders after a successful link.
    glDetachShader(program, vertexShader);
    glDetachShader(program, fragmentShader);
}

我们做的第一件事情是创建着色器：

// Create an empty vertex shader handle
GLuint vertexShader = glCreateShader(GL_VERTEX_SHADER);

一个小插曲，之前我们使用过的 API 是以 glGen...() 开头的，而现在调用的是 glCreate...()。

// Send the vertex shader source code to GL
// Note that std::string's .c_str is NULL character terminated.
const GLchar *source = vertexSrc.c_str();
glShaderSource(vertexShader, 1, &source, 0);

// Compile the vertex shader
glCompileShader(vertexShader);

这部分我们发送顶点着色器源码至 GL，并且正确编译它。

GLint isCompiled = 0;
glGetShaderiv(vertexShader, GL_COMPILE_STATUS, &isCompiled);
if(isCompiled == GL_FALSE)
{
	GLint maxLength = 0;
	glGetShaderiv(vertexShader, GL_INFO_LOG_LENGTH, &maxLength);

	// The maxLength includes the NULL character
	std::vector<GLchar> infoLog(maxLength);
	glGetShaderInfoLog(vertexShader, maxLength, &maxLength, &infoLog[0]);

	// We don't need the shader anymore.
	glDeleteShader(vertexShader);

	// Use the infoLog as you see fit.

	// In this simple program, we'll just leave
	return;
}

这段代码则是检测编译成功还是失败。倘若编译失败，我们获取日志的长度提取信息，输出日志为什么我们的着色器无法编译，最好我们删除着色器。

这里我们加入引擎的报错和断言：

...

	// Use the infoLog as you see fit.
+	IFN_CORE_ERROR("{0}", infoLog.data());
+	IFN_CORE_ASSERT(false, "Vertex Shader compilation failure!");

	// In this simple program, we'll just leave
	return;
}

后面的片段着色器其实在做相同的事情，加入引擎自己的调试报错和断言：

// Create an empty fragment shader handle
GLuint fragmentShader = glCreateShader(GL_FRAGMENT_SHADER);

// Send the fragment shader source code to GL
// Note that std::string's .c_str is NULL character terminated.
source = (const GLchar *)fragmentSrc.c_str();
glShaderSource(fragmentShader, 1, &source, 0);

// Compile the fragment shader
glCompileShader(fragmentShader);

glGetShaderiv(fragmentShader, GL_COMPILE_STATUS, &isCompiled);
if (isCompiled == GL_FALSE)
{
	GLint maxLength = 0;
	glGetShaderiv(fragmentShader, GL_INFO_LOG_LENGTH, &maxLength);

	// The maxLength includes the NULL character
	std::vector<GLchar> infoLog(maxLength);
	glGetShaderInfoLog(fragmentShader, maxLength, &maxLength, &infoLog[0]);

	// We don't need the shader anymore.
	glDeleteShader(fragmentShader);
	// Either of them. Don't leak shaders.
	glDeleteShader(vertexShader);

	// Use the infoLog as you see fit.
	IFN_CORE_ERROR("{0}", infoLog.data());
	IFN_CORE_ASSERT(false, "Fragment Shader compilation failure!");

	// In this simple program, we'll just leave
	return;
}

然后我们创建程序，它将是我们在 GPU 上运行的两个着色器的组合总线，然后编译并链接程序：

// Vertex and fragment shaders are successfully compiled.
// Now time to link them together into a program.
// Get a program object.
GLuint program = glCreateProgram();

// Attach our shaders to our program
glAttachShader(program, vertexShader);
glAttachShader(program, fragmentShader);

// Link our program
glLinkProgram(program);

最后与之前类似，就是检测编译成功与否：

// Note the different functions here: glGetProgram* instead of glGetShader*.
GLint isLinked = 0;
glGetProgramiv(program, GL_LINK_STATUS, (int *)&isLinked);
if (isLinked == GL_FALSE)
{
	GLint maxLength = 0;
	glGetProgramiv(program, GL_INFO_LOG_LENGTH, &maxLength);

	// The maxLength includes the NULL character
	std::vector<GLchar> infoLog(maxLength);
	glGetProgramInfoLog(program, maxLength, &maxLength, &infoLog[0]);

	// We don't need the program anymore.
	glDeleteProgram(program);
	// Don't leak shaders either.
	glDeleteShader(vertexShader);
	glDeleteShader(fragmentShader);

	// Use the infoLog as you see fit.
    IFN_CORE_ERROR("{0}", infoLog.data());
	IFN_CORE_ASSERT(false, "Shader link failure!");

	// In this simple program, we'll just leave
	return;
}

// Always detach shaders after a successful link.
glDetachShader(program, vertexShader);
glDetachShader(program, fragmentShader);

最后删除着色器文件即可。

返回 Application.h，加入着色器头文件和着色器：

#pragma once

#include "Core.h"
#include "../Window.h"
#include "LayerStack.h"
#include "Events/Event.h"
#include "Events/ApplicationEvent.h"

#include "./ImGui/ImGuiLayer.h"

+#include "./Renderer/Shader.h"

namespace Infinite {
	class INFINITE_API Application
	{
	public:
		Application();
		virtual ~Application();

		void Run();
		void OnEvent(Event& e);

		void PushLayer(Layer* layer);
		void PushOverlay(Layer* layer);

		inline Window& GetWindow() { return *m_Window; }

		inline static Application& Get() { return *s_Instance; }
	private:
		bool OnWindowClose(WindowCloseEvent& e);

		std::unique_ptr<Window> m_Window;
		ImGuiLayer* m_ImGuiLayer;
		bool m_Running = true;
		LayerStack m_LayerStack;

		unsigned int m_VertexArray, m_VertexBuffer, m_IndexBuffer;
+		std::unique_ptr<Shader> m_Shader;
	private:
		static Application* s_Instance;
	};

	//To be define in CLIENT
	Application* CreateApplication();
}

最后写入着色器即可：

Application::Application()
{
    IFN_CORE_ASSERT(!s_Instance, "Application already exists!");
    s_Instance = this;

    m_Window = std::unique_ptr<Window>(Window::Create());
    m_Window->SetEventCallback(BIND_EVENT_FN(OnEvent));

    m_ImGuiLayer = new ImGuiLayer();
    PushOverlay(m_ImGuiLayer);

    // Vertex Array
    glGenVertexArrays(1, &m_VertexArray);
    glBindVertexArray(m_VertexArray);

    // Vertex Buffer
    glGenBuffers(1, &m_VertexBuffer);
    glBindBuffer(GL_ARRAY_BUFFER, m_VertexBuffer);


    float vertices[3 * 3] = {
        -0.5f, -0.5f, 0.0f,
        0.5f, -0.5f, 0.0f,
        0.0f,  0.5f, 0.0f
    };

    glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices, GL_STATIC_DRAW);

    glEnableVertexAttribArray(0);
    glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(float), nullptr);

    glGenBuffers(1, &m_IndexBuffer);
    glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, m_IndexBuffer);

    unsigned int indices[3] = { 0, 1, 2 };
    glBufferData(GL_ELEMENT_ARRAY_BUFFER, sizeof(indices), indices, GL_STATIC_DRAW);


    std::string vertexSrc = R"(

			layout(location = 0) in vec3 a_Position;

			void main()
			{
				gl_Position = vec4(a_Position, 1.0);

			}
		)";


    std::string fragmentSrc = R"(

			layout(location = 0) out vec4 color;

			void main()
			{
				color = vec4(0.8, 0.2, 0.3, 1.0);

			}
		)";



    m_Shader.reset(new Shader(vertexSrc, fragmentSrc));

}

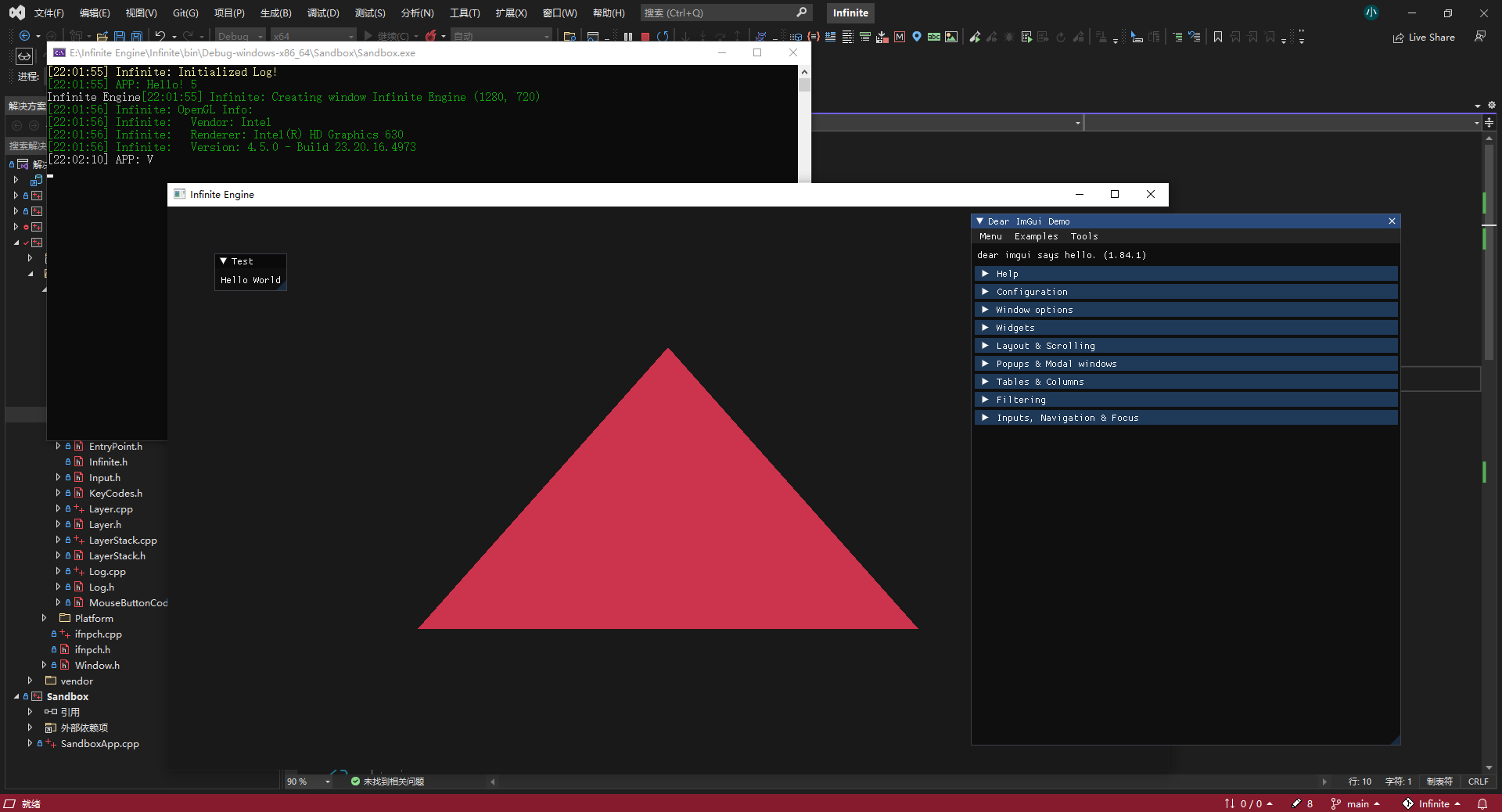

预生成文件
