Objective
- Building Pilot engine development environment for upcoming programming assignments
- Getting familiar with Smartchair (Assignment Submission Platform) submission flow
Description
Building Pilot engine development environment
Downloading Source Code
Install CMake
Pilot Engine uses CMake to generate project files. Please refer https://cmake.org/download/ for downloading and installing CMake
Build and Run Pilot
Windows
Visual Studio 2019 or later is the recommended IDE on Windows.
Generate the project files with CMake
Run the following command from Pilot root directory:
cmake -S engine/ -B build

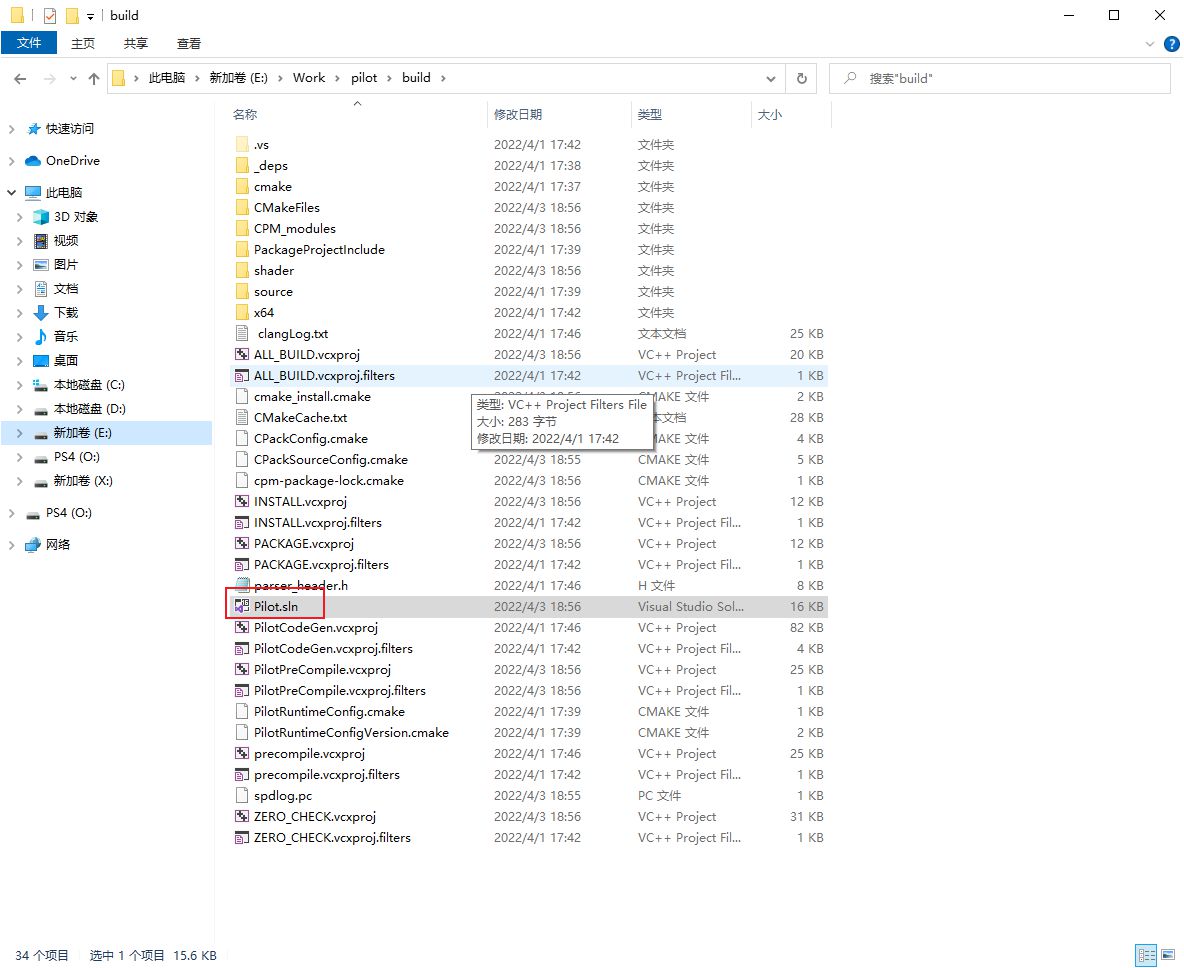

Open Pilot.sln with Visual Studio

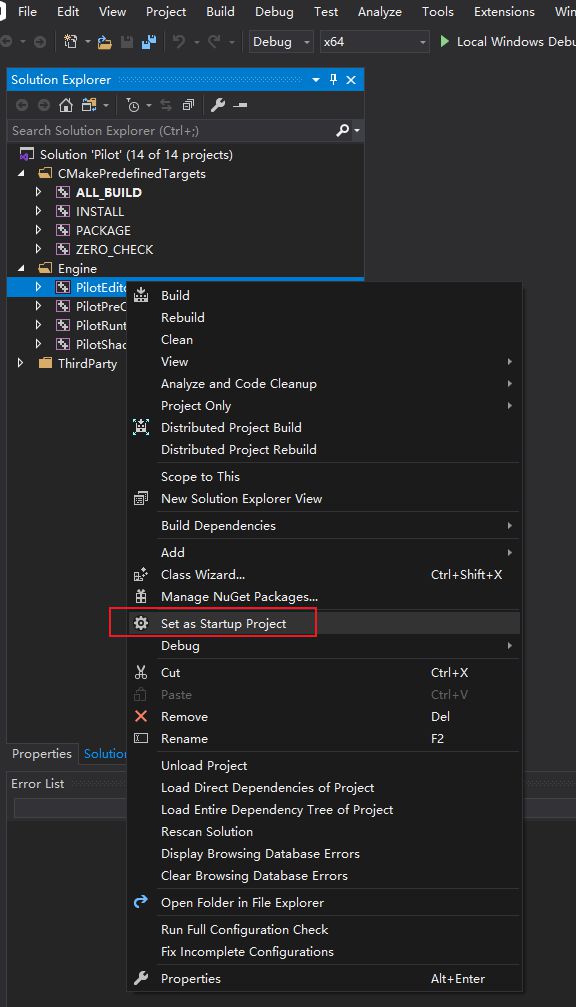

Set PilotEditor project as Startup Project

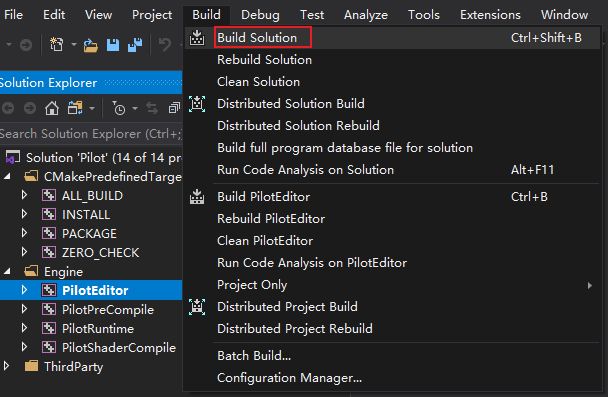

Build Solution
Run PilotEditor
- You can use keyboard shortcut F5 (Start debugging) or Ctrl + F5 (Start Without debugging).
MacOS
Xcode is the recommended IDE on MacOS
Generate the project files with CMake

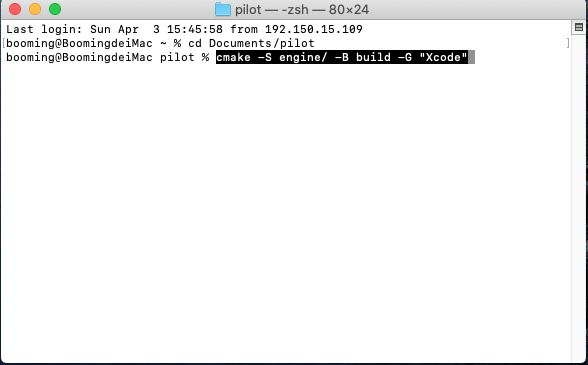

Run the following command from Pilot root directory:
cmake -S engine/ -B build -G "Xcode"

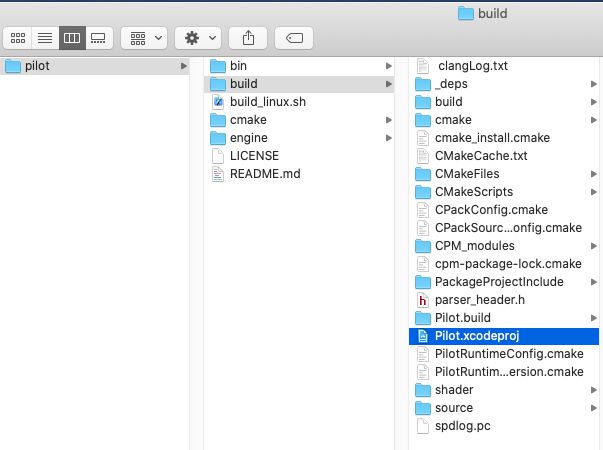

Open Pilot.xcodeproj with Xcode

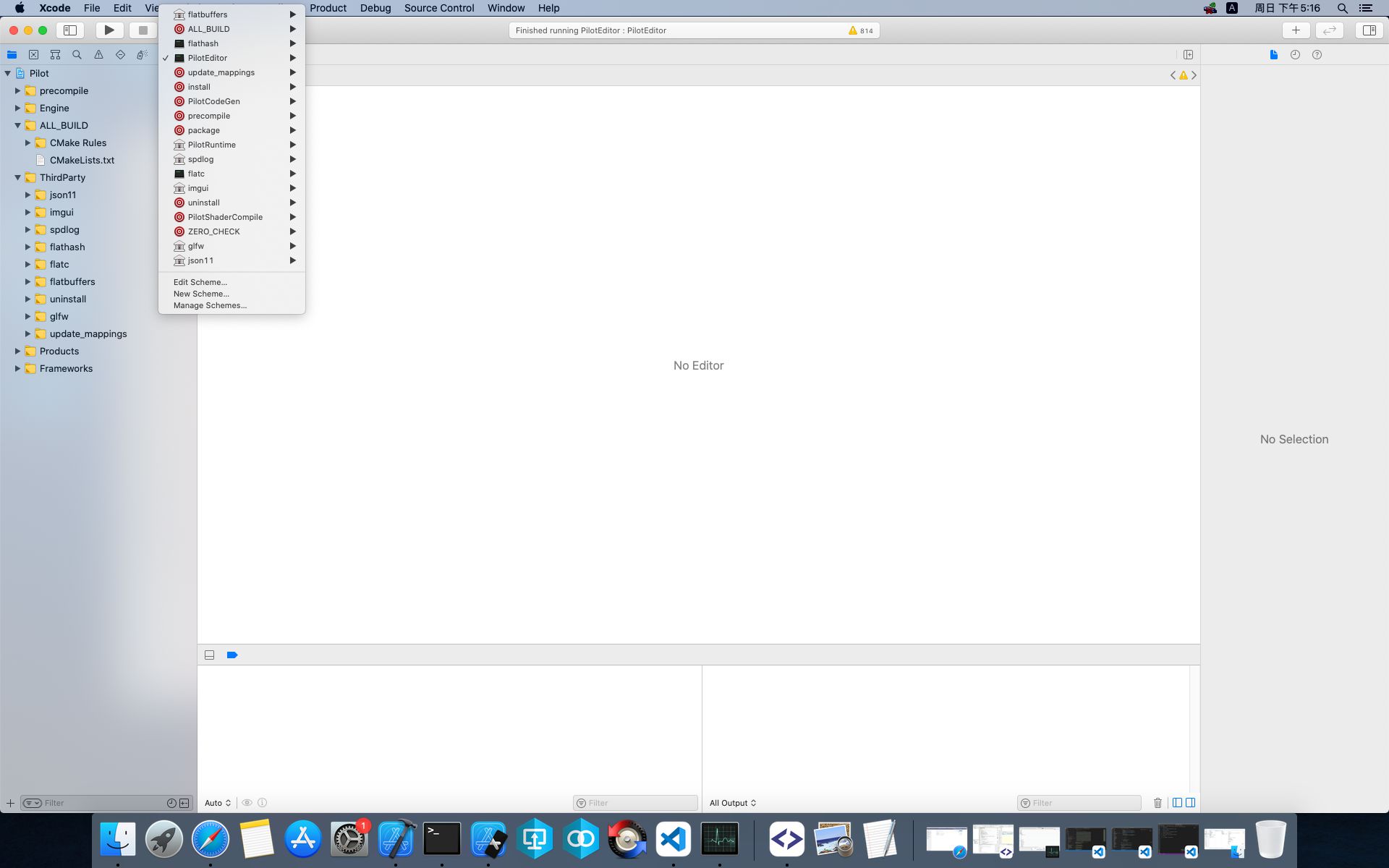

Set PilotEditor project as Startup Project
Build Solution
- You can use keyboard shortcut ⌘B (Cmd + B)
Run PilotEditor
- You can use keyboard shortcut ⌘R (Cmd + R)
Linux
VSCode is the recommended IDE on Linux.
Following procedures were tested on Ubuntu 20.04 LTS.
Configure development environment
- Follow the instruction in README.md.

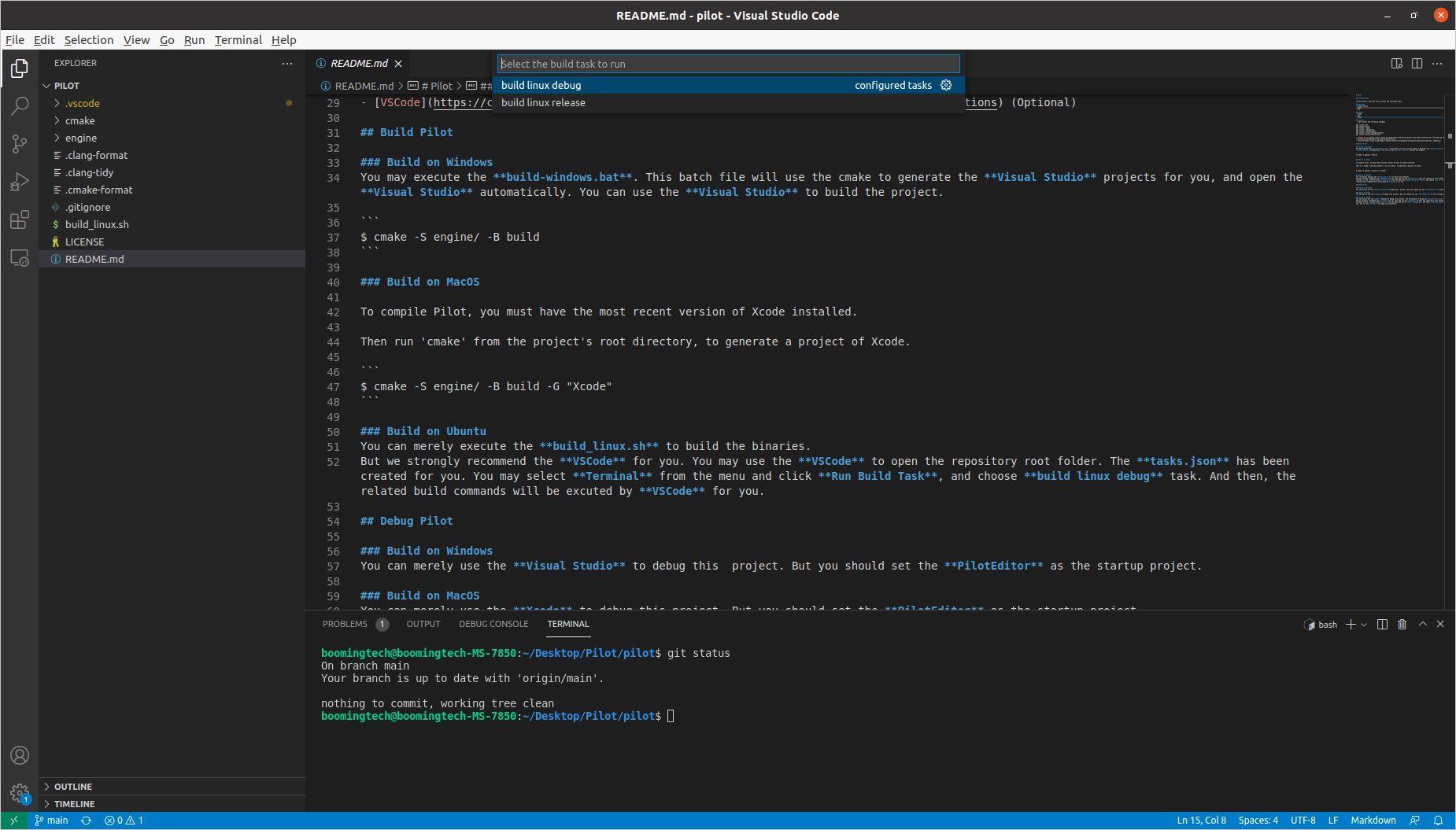

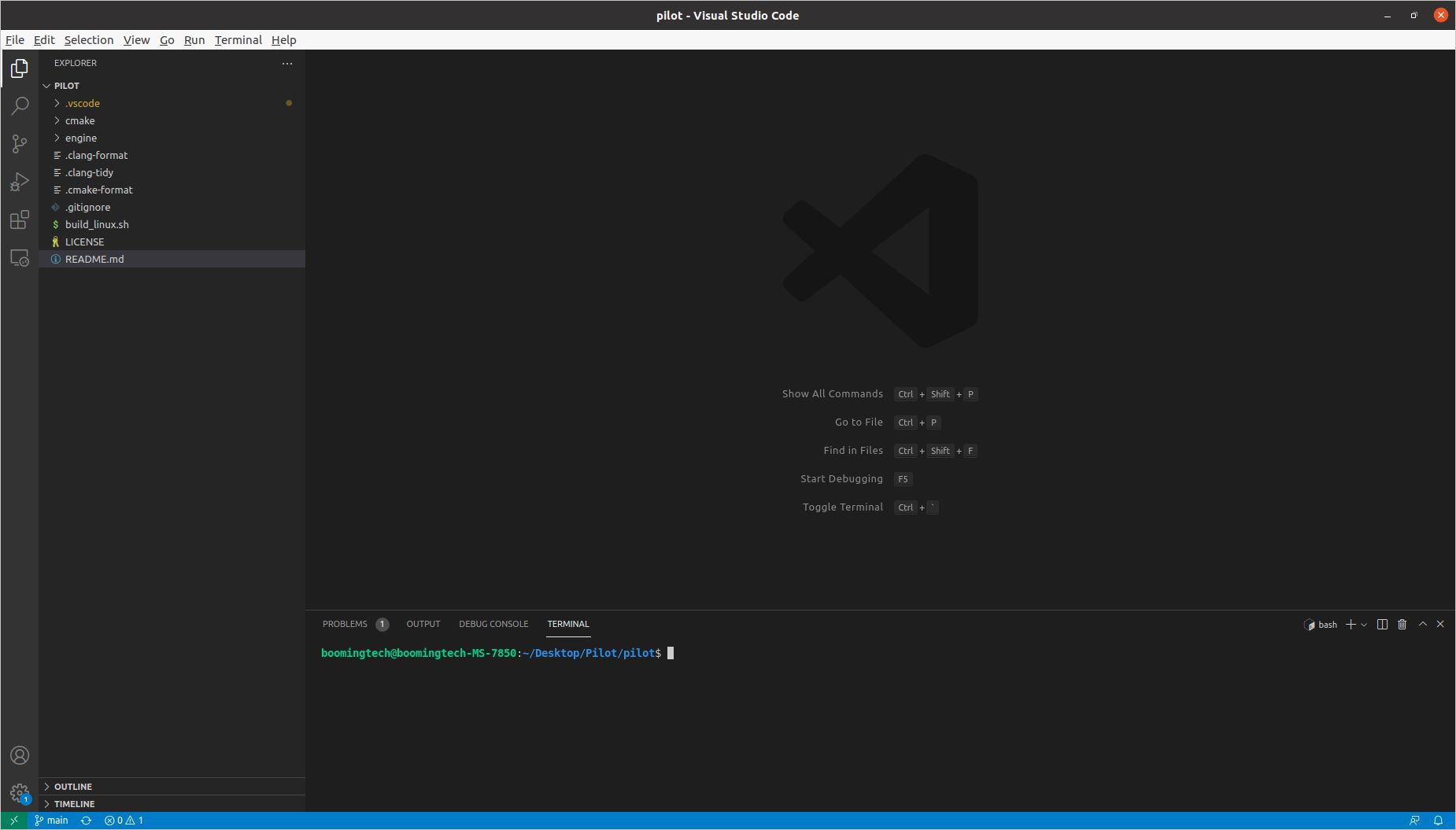

Open the root directory with VSCode
Build Solution
- Terminal → Run build task → build linux debug
Run PilotEditor
- Run → Run Without Debugging

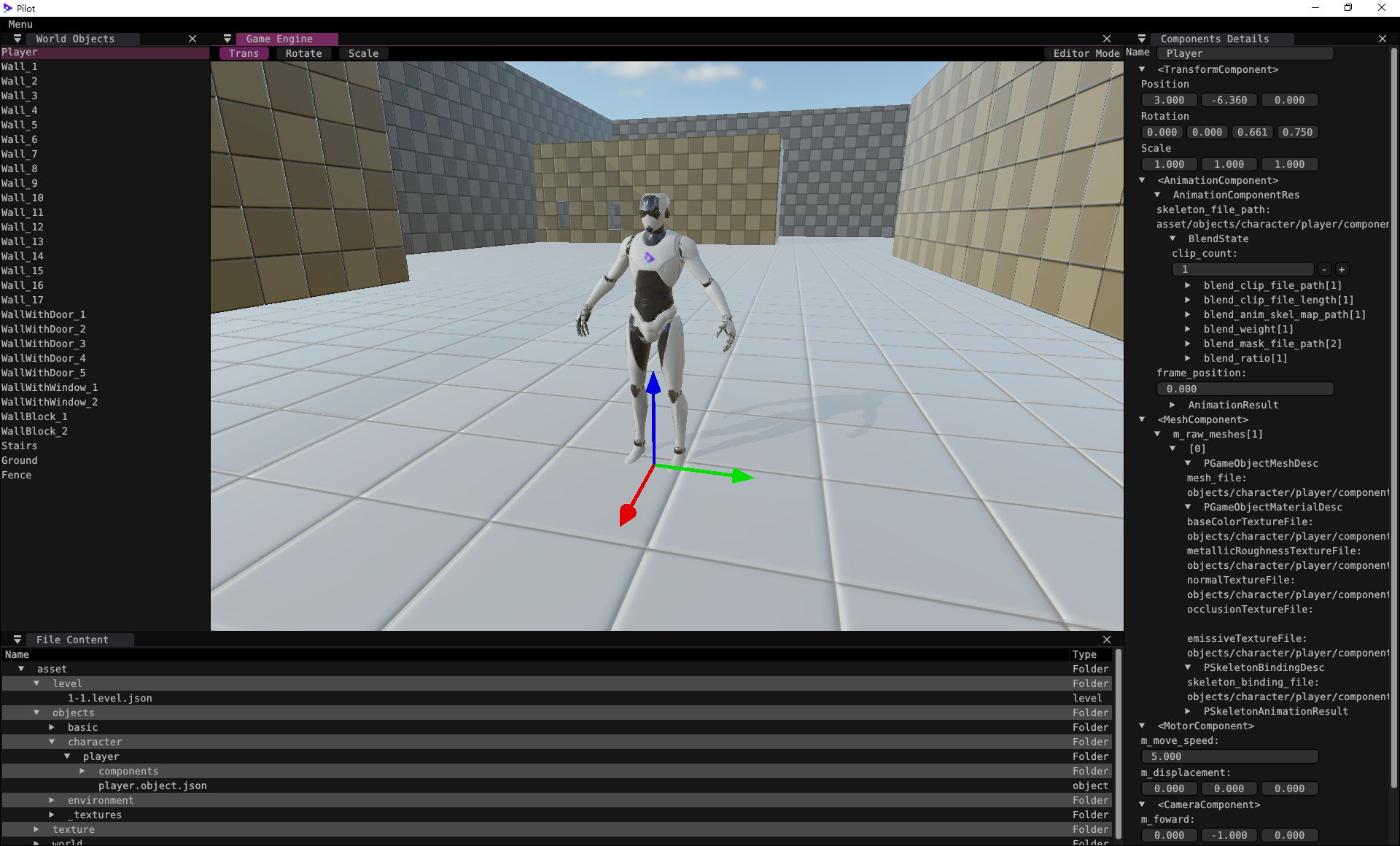

Play around in PilotEditor
Editor Mode
- Translate, rotate, and scale game objects
- Add and delete game objects
- Reload and save current level
Game Mode
- Controlling the robot (ASWD to run and press shift for sprint)
Submission
- After running PilotEditor successfully, choose your favorite view and take a screenshot.
Submit the screenshot image on Smartchair.
For SmartChair operating instructions, please refer:
Deadline
- Deadline for submmision: GMT+8 20::00::00 Apr 18, 2022
Grading and Q&A
- The objectives for this assignment are building development environment and getting familiar with Smartchair submission flow. So this assignment will not be graded.
- If you have any question during building Pilot development envrionment, you can ask in our Wechat Course Group or post on our course forum. Course Team and Course Supporters will answer.
- Course Forum : https://games-cn.org/forums/forum/games104-forum/
- Wechat Course Group : Please add gameswebinar as Friend and send “104“ to enter the course group
Attention
- Each assignments must be accomplished independently.
- Please submit your assignment before the deadline.
