### 引言

上一节我们构造了渲染 API 的抽象、OpenGL 顶点缓冲区和索引缓冲区的类。今天我们将着重讨论缓冲区布局。

当我在讨论缓冲区布局时，意思是说我真的是在讨论顶点缓冲区布局。之前我们提到，无需处理顶点缓冲区就无法真正渲染任何内容。

缓冲布局类

#pragma once

namespace Infinite {

	enum class ShaderDataType
	{
		None = 0, Float, Float2, Float3, Float4, Mat3, Mat4, Int, Int2, Int3, Int4, Bool
	};

	static uint32_t ShaderDataTypeSize(ShaderDataType type)
	{
		switch (type)
		{
			case ShaderDataType::Float:			return 4;
			case ShaderDataType::Float2:			return 4 * 2;
			case ShaderDataType::Float3:			return 4 * 3;
			case ShaderDataType::Float4:			return 4 * 4;
			case ShaderDataType::Mat3:			return 4 * 3 * 3;
			case ShaderDataType::Mat4:			return 4 * 4 * 4;
			case ShaderDataType::Int:				return 4;
			case ShaderDataType::Int2:				return 4 * 2;
			case ShaderDataType::Int3:				return 4 * 3;
			case ShaderDataType::Int4:				return 4 * 4;
			case ShaderDataType::Bool:				return 1;
		}

		IFN_CORE_ASSERT(false, "Unknown ShaderDataType!");
		return 0;
	}

	struct BufferElement
	{
		std::string Name;
		ShaderDataType Type;
		uint32_t Offset;
		uint32_t Size;
		bool Normalized;

		BufferElement(ShaderDataType type, const std::string& name, bool normalize = false)
			: Name(name), Type(type), Size(ShaderDataTypeSize(type)), Offset(0), Normalized(false)
		{
		}

		uint32_t GetComponentCount() const
		{
			switch (Type)
			{
			case ShaderDataType::Float:		return 1;
			case ShaderDataType::Float2:		return 2;
			case ShaderDataType::Float3:		return 3;
			case ShaderDataType::Float4:		return 4;
			case ShaderDataType::Mat3:		return 3 * 3;
			case ShaderDataType::Mat4:		return 4 * 4;
			case ShaderDataType::Int:			return 1;
			case ShaderDataType::Int2:			return 2;
			case ShaderDataType::Int3:			return 3;
			case ShaderDataType::Int4:			return 4;
			case ShaderDataType::Bool:			return 1;
			}

			IFN_CORE_ASSERT(false, "Unknown ShaderDataType!");
			return 0;
		}
	};

	class BufferLayout
	{
	public:
		BufferLayout() {}
		BufferLayout(const std::initializer_list<BufferElement>& elements)
			:m_Elements(elements)
		{
			CalculateOffsetsAndStride();
		}

		inline uint32_t GetStride() const { return m_Stride; }
		inline const std::vector<BufferElement>& GetElements() const { return m_Elements; }

		std::vector<BufferElement>::iterator begin() { return m_Elements.begin(); }
		std::vector<BufferElement>::iterator end() { return m_Elements.end(); }
		std::vector<BufferElement>::const_iterator begin() const { return m_Elements.begin(); }
		std::vector<BufferElement>::const_iterator end() const { return m_Elements.end(); }
	private:
		void CalculateOffsetsAndStride()
		{
			m_Stride = 0;
			uint32_t offset = 0;
			for (auto& element : m_Elements)
			{
				element.Offset = offset;
				offset += element.Size;
				m_Stride += element.Size;
			}
		}

	private:
		uint32_t m_Stride = 0;
		std::vector<BufferElement> m_Elements;
	};

	class VertexBuffer
	{
@@ -10,6 +106,9 @@ namespace Infinite {
		virtual void Bind() const = 0;
		virtual void Unbind() const = 0;

		virtual void SetLayout(const BufferLayout& layout) = 0;
		virtual const BufferLayout& GetLayout() const = 0;

		static VertexBuffer* Create(float* vertices, uint32_t size);
	};

Buffer.h 加入着色器数据类型映射以及缓冲布局类。

应用类调整

@@ -14,6 +14,27 @@ namespace Infinite {

	Application* Application::s_Instance = nullptr;

+	static GLenum ShaderDataTypeToOpenGLBaseType(ShaderDataType type)
+	{
+		switch (type)
+		{
+		case Infinite::ShaderDataType::Float:    return GL_FLOAT;
+		case Infinite::ShaderDataType::Float2:   return GL_FLOAT;
+		case Infinite::ShaderDataType::Float3:   return GL_FLOAT;
+		case Infinite::ShaderDataType::Float4:   return GL_FLOAT;
+		case Infinite::ShaderDataType::Mat3:     return GL_FLOAT;
+		case Infinite::ShaderDataType::Mat4:     return GL_FLOAT;
+		case Infinite::ShaderDataType::Int:      return GL_INT;
+		case Infinite::ShaderDataType::Int2:     return GL_INT;
+		case Infinite::ShaderDataType::Int3:     return GL_INT;
+		case Infinite::ShaderDataType::Int4:     return GL_INT;
+		case Infinite::ShaderDataType::Bool:     return GL_BOOL;
+		}
+
+		IFN_CORE_ASSERT(false, "Unknown ShaderDataType!");
+		return 0;
+	}

	Application::Application()
	{
		IFN_CORE_ASSERT(!s_Instance, "Application already exists!");
@@ -30,18 +51,37 @@ namespace Infinite {
		glBindVertexArray(m_VertexArray);


-		float vertices[3 * 3] = {
-			-0.5f, -0.5f, 0.0f,
-			 0.5f, -0.5f, 0.0f,
-			 0.0f,  0.5f, 0.0f
+		float vertices[3 * 7] = {
+			-0.5f, -0.5f, 0.0f, 0.8f, 0.2f, 0.8f, 1.0f,
+			 0.5f, -0.5f, 0.0f, 0.2f, 0.3f, 0.8f, 1.0f,
+			 0.0f,  0.5f, 0.0f, 0.8f, 0.8f, 0.2f, 1.0f
		};

		m_VertexBuffer.reset(VertexBuffer::Create(vertices, sizeof(vertices)));

-		glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices, GL_STATIC_DRAW);
+		{
+			BufferLayout layout = {
+				{ ShaderDataType::Float3, "a_Position" },
+				{ ShaderDataType::Float4, "a_Color" }
+			};
+
+			m_VertexBuffer->SetLayout(layout);
+		}

-		glEnableVertexAttribArray(0);
-		glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(float), nullptr);
+		uint32_t index = 0;
+		const auto& layout = m_VertexBuffer->GetLayout();
+		for (const auto& element: layout)
+		{
+			glEnableVertexAttribArray(index);
+			glVertexAttribPointer(index,
+				element.GetComponentCount(),
+				ShaderDataTypeToOpenGLBaseType(element.Type),
+				element.Normalized ? GL_TRUE : GL_FALSE,
+				layout.GetStride(),
+				(const void*)element.Offset);
+			index++;
+		}


		uint32_t indices[3] = { 0, 1, 2 };
		m_IndexBuffer.reset(IndexBuffer::Create(indices, sizeof(indices) / sizeof(uint32_t)));
@@ -51,10 +91,15 @@ namespace Infinite {
			#version 330 core

			layout(location = 0) in vec3 a_Position;
+			layout(location = 1) in vec4 a_Color;
			out vec3 v_Position;
+			out vec4 v_Color;
			void main()
			{
				v_Position = a_Position;
+				v_Color = a_Color;
				gl_Position = vec4(a_Position, 1.0);
			}
		)";
@@ -63,10 +108,14 @@ namespace Infinite {
			#version 330 core

			layout(location = 0) out vec4 color;
			in vec3 v_Position;
+			in vec4 v_Color;
			void main()
			{
				color = vec4(v_Position * 0.5 + 0.5, 1.0);
+				color = v_Color;
			}
		)";

在 Application.cpp 中替换部分顶点缓冲区代码，并对着色器代码稍加修改。

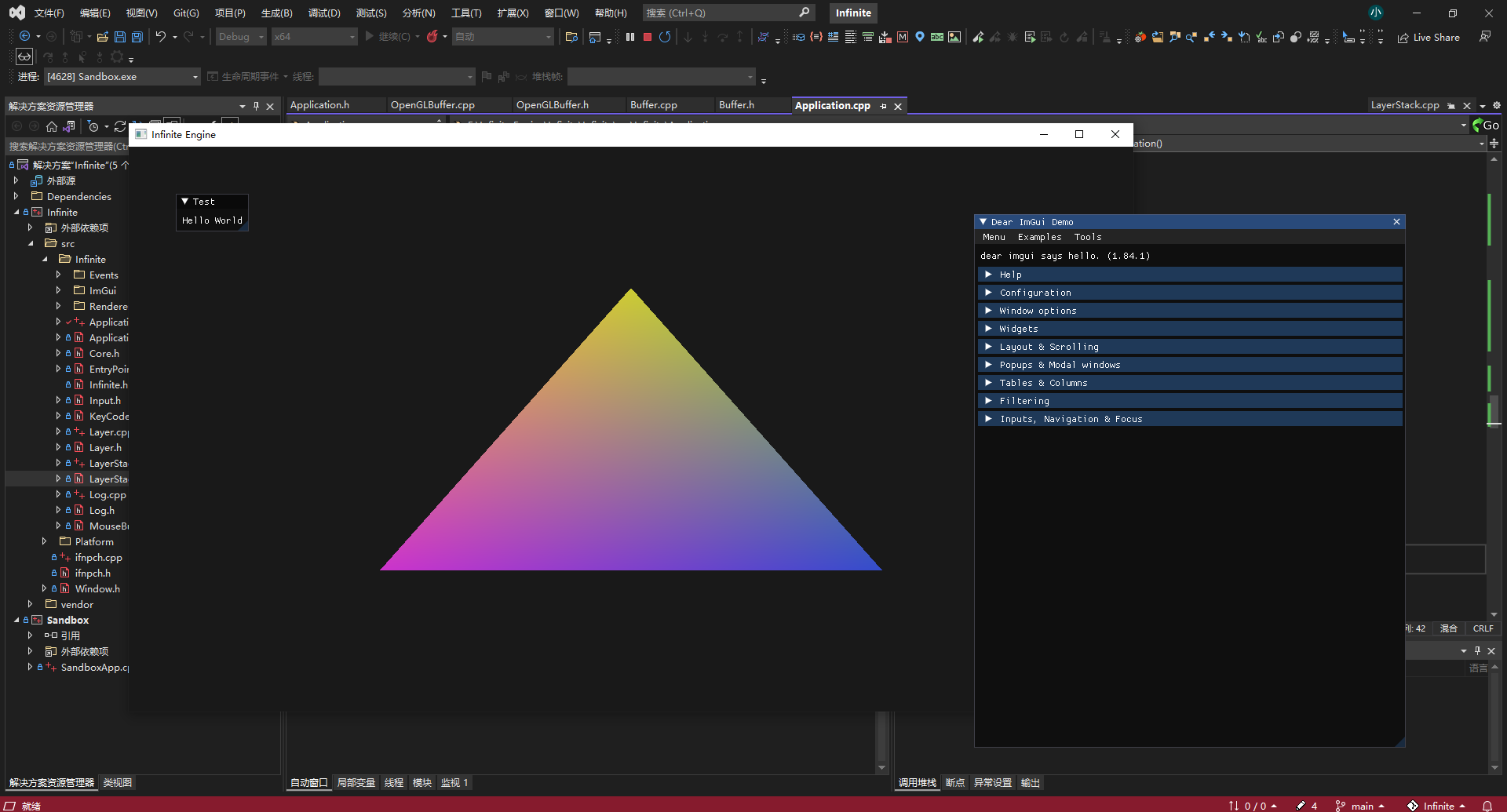

调试
